Product Summary
The DS21455+ is a quad monolithic device featuring independent transceiver that can be software configured for T1, E1, or J1 operation. Each is composed of a line interface unit (LIU), framer, HDLC controllers, and a TDM backplane interface, and is controlled via an 8-bit parallel port configured for Intel or Motorola bus operations. The DS21455+ is a direct replacement for the older DS21Q55 quad MCM device.
Parametrics
DS21455+ absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground:-1.0V to +6.0V; (2)Operating Temperature Range for DS21455: 0℃ to +70℃; (3)Operating Temperature Range for DS21455: -40℃ to +85℃; (4)Storage Temperature Range: -55℃ to +125℃; (5)Soldering Temperature: See IPC/JEDEC J-STD-020.
Features
DS21455+ features: (1)Complete T1 (DS1)/ISDN-PRI/J1 Transceiver Functionality; (2)Complete E1 (CEPT) PCM-30/ISDN-PRI Transceiver Functionality; (3)Short- and Long-Haul Line Interface for Clock/Data Recovery and Waveshaping; (4)CMI Coder/Decoder; (5)Crystal-Less Jitter Attenuator; (6)Fully Independent Transmit and Receive Functionality; (7)Dual HDLC Controllers; (8)On-Chip Programmable BERT Generator and Detector; (9)Programmable Output Clocks for Fractional T1, E1, H0, and H12 Applications; (10)Interleaving PCM Bus Operation; (11)8-Bit Parallel Control Port, Multiplexed or Nonmultiplexed, Intel or Motorola; (12)IEEE 1149.1 JTAG-Boundary Scan; (13)3.3V Supply with 5V Tolerant Inputs and Outputs; (14)DS21455 Directly Replaces DS21Q55; (15)Signaling System 7 (SS7) Support; (16)RAI-CI, AIS-CI Support.

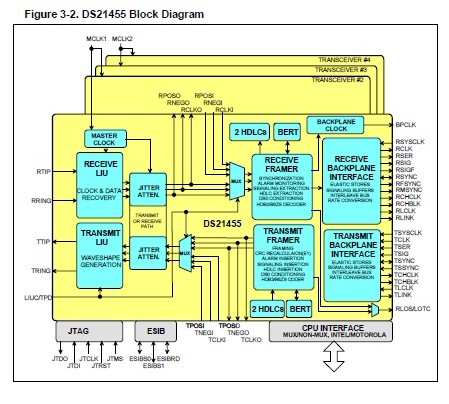

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

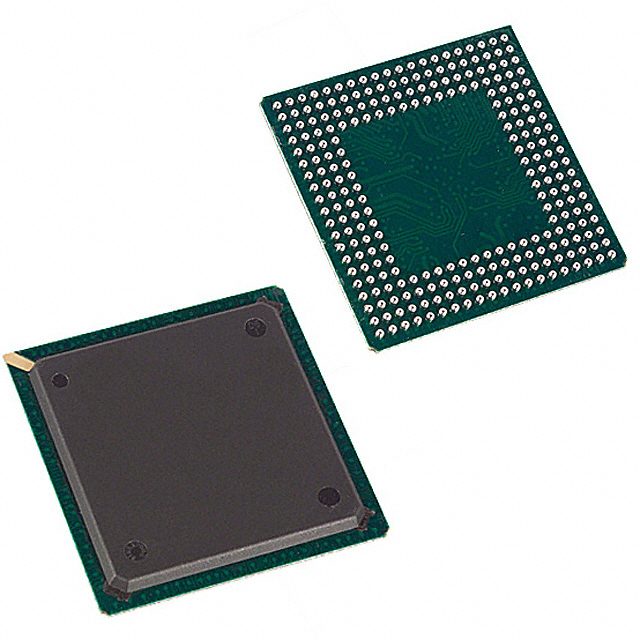

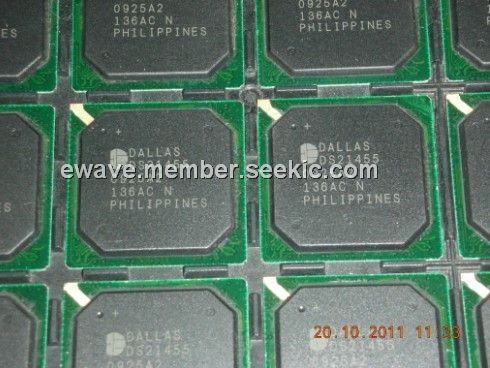

 DS21455+ |
Maxim Integrated Products |
Network Controller & Processor ICs Quad E1-T1-J1 Transceiver |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
DS2101SV |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
DS2101SY |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
DS2102SV |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
DS2102SY |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
DS2103SY |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
DS2105 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
