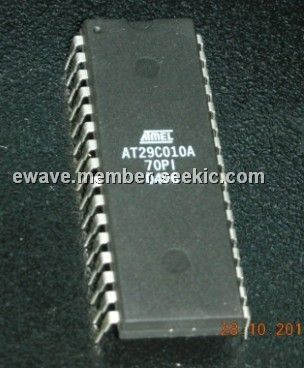

AT29C010A-70PI

32DIP, Flash PEROM, 1MBIT, 70NS, 128K x 8, Single 5V ±10% Supply, 50 mA Active Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.50~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.50~7.50

PartNumber:: AT29C010A-70PI

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. sushil's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-28

From Other Seller

Part Number:AT29C010A-70PI
US $6.50 - 7.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT29C010A-70PI is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C010A-70PI offers access times to 70 ns with power dissipation of just 275 mW over the commercial temperature range. When the AT29C010A-70PI is deselected, the CMOS standby current is less than 100μA. The AT29C010A-70PI endurance is such that any sector can typically be written to in excess of 10,000 times. Reading data out of the device is similar to reading from an EPROM. Reprogramming the AT29C010A-70PI is performed on a sector basis; 128 bytes of data are loaded into the device and then simultaneously programmed.

Parametrics

AT29C010A-70PI absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.

Features

AT29C010A-70PI features: (1)Fast Read Access Time:70 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation:Single Cycle Reprogram (Erase and Program), 1024 Sectors (128 Bytes/sector),Internal Address and Data Latches for 128 Bytes; (4)Two 8K Bytes Boot Blocks with Lockout; (5)Internal Program Control and Timer; (6)Hardware and Software Data Protection; (7)Fast Sector Program Cycle Time:10 ms; (8)DATA Polling for End of Program Detection ; (9)Low Power Dissipation:50 mA Active Current, 100μA CMOS Standby Current; (10)Typical Endurance ＞10,000 Cycles; (11)Single 5V ±10% Supply; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Commercial and Industrial Temperature Ranges.
