Product Summary

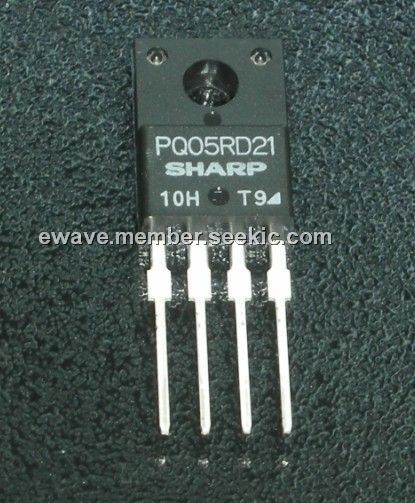

The PQ05RD21 series is 2.0A output type low power-loss voltage regulator(TO-220). It contributes to energy and space saving of various electronic equipment such as AV, OA equipment.
Parametrics
PQ05RD21 absolute maximum ratings: (1)Input voltage, Vin: 20 V; (2)ON/OFF control terminal voltage Vc: 20 V; (3)Output current Io: 2.0 A; (4)Power dissipation Pd1: 1.4 W; Pd2: 15 W; (5)Junction temperature Tj: 150 ℃; (6)Operating temperature Topr: -20 to +80 ℃; (7)Storage temperature Tstg: -40 to +150 ℃; (8)Soldering temperature Tsol: 260(For 10s) ℃.
Features
PQ05RD21 features: (1) Low power-loss(Dropout voltage: MAX 0.5V at Io=2.0A); (2) 2.0A output type; (3) Compact resin full-mold package(equivalent to TO-220); (4) Available 3.3V/5V/9V/12V output type; (5) Output voltage precision: ±3.0%; (6) Built-in ON/OFF control function; (7) Overcurrent, overheat protection functions; (8) Lead forming type is also available.

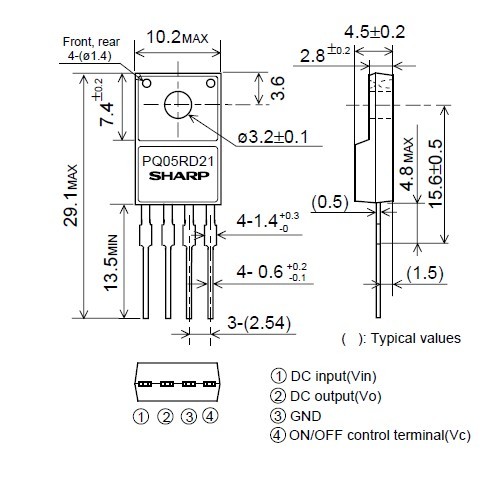

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PQ05RD21 |
|
IC REG LDO 5V 2A TO-220 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
PQ05RD21J00H |
Sharp Microelectronics |
Low Dropout (LDO) Regulators LDO 5.0V 2A |
Data Sheet |
|
|
||||||||||||
