Product Summary

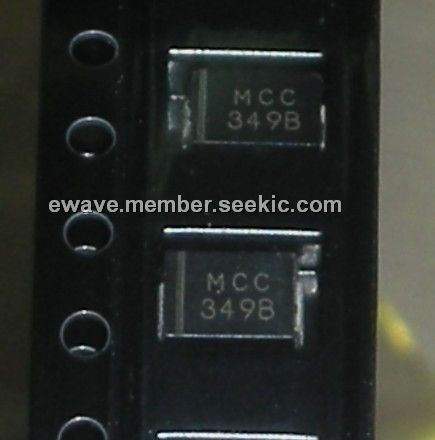

The SMBJ5349B-TP is a 5 Watt surface mount Silicon zener diode.
Parametrics
SMBJ5349B-TP absolute maximum ratings: (1)Forward Voltage at 1.0A Current, VF: 1.2Volts; (2)Steady State Power Dissipation, P(AV): 5Watts; (3)Operating and Storage Temperatures, TJ, TSTG: -55℃ to +150℃; (4)Thermal Resistance, RθJL: 25℃/W.
Features
SMBJ5349B-TP (1)Low Profile Package for Surface Mountiong(Flat Handling Surface for Accurate Placement); (2)Zener Voltage 5.1V to 51V; (3)High Surge Current Capability; (4)For Available Tolerances-see Note 1; (5)Available on Tape and Reel; (6)Lead Free Finish/Rohs Compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SMBJ5349B-TP |
Micro Commercial Components (MCC) |
Zener Diodes 5W 12V |
Data Sheet |
|
|
||||||||||||
