Product Summary

The 52435-2272 is a 0.020” (0.50mm) connector.

Parametrics

52435-2272 absolute maximum ratings: (1)Pitch: 0.020” (0.50mm) ; (2)Mounting Type: Surface Mount, Right Angle ; (3)Packaging: Tape & Reel (TR); (4)Connector Type: Top Contacts; (5)Number of Positions: 22; (6)Locking Feature: Slide Lock; (7)Termination: Solder; (8)FFC, FCB Thickness: 0.30mm; (9)Lead Free Status: Lead Free; (10)RoHS Status: RoHS Compliant.

Features

52435-2272 features: Solder Retention, Zero Insertion Force (ZIF) .

Diagrams

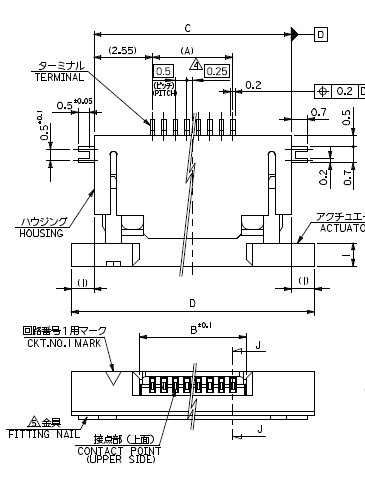

52435-2272 package dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
52435-2272
52435-2272
Molex
FFC / FPC Connectors RA SMT ZIF TOP 22P top contact style
Data Sheet
Negotiable
